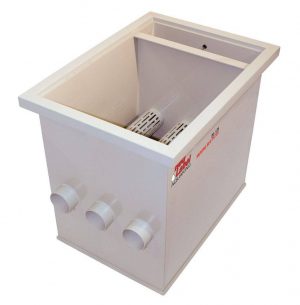

Aquaking Red Label Moving Bed Filter 30/35
The ideal extension of the Red Label Drum Filter is the Red Label Moving Bed Filter. After removing the coarse dirt through the drum filter, the water ends up in this biological filter. In this filter phase, the water is brought into contact with bacteria that grow on a plastic material, the so-called biocarrier. The amount of Biocarrier to be used depends on the amount of waste that the filter has to process.
The Biocarrier is kept moving in the filter by air supplied by 2 air stones. For an optimal processing of waste by the bacteria in the biofilm a certain degree of “pollution” is required.
As a result, it is not desirable for the pre-filter (drum filter) to collect all dirt that is smaller than 70 microns. The Red Label Moving Bed Filters are supplied with air stones and 100 liters of Biocarrier.
The combinations of Red Label Drum filter and Red Label Moving Bed Filter are coordinated in such a way that a stable bacterial culture is guaranteed and the degradation of harmful substances proceeds optimally.
Suitable for a pond with a maximum capacity of 45,000 liters.
Type: 30/35
Pond up to 35 m³
Size: (L x W x H) 950 x 700 x 830 mm
Max flow 35 m³ / h
Inlet: 3 x 110 mm
Output: 3 x 110 mm
Including 2 x Air stone
Excl. Air pump 1 x 60 liters per minute
Material: Polypropylene
Including lid
Including Biocarrier 100 liters
Color: Sahara
